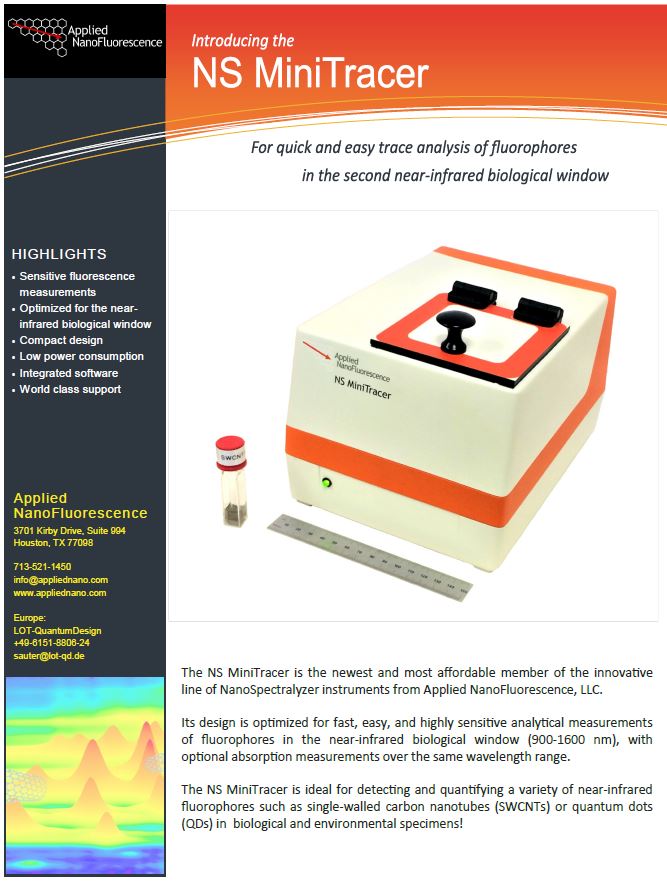

Introducing: The NS MiniTracer

The NS MiniTracer is the latest addition to the innovative line of NanoSpectralyzer instruments from Applied NanoFluorescence, LLC. Its design is optimized for fast, easy, and highly sensitive analytical measurements on a variety of samples containing near-infrared fluorophores such as single-walled carbon nanotubes or quantum dots. The MiniTracer is ideal for quantitating SWCNTs in environmental and biological specimens and is also perfect for routine sample characterization in any SWCNT research lab.



Features

  • Most affordable fluorometer for single-walled carbon nanotubes
  • Quick measurements with user-friendly software
  • Trace detection down to sub-nanogram levels; lowest LOD and LOQ
  • Wide dynamic range
  • Robust and compact design: approximately 165 x 215 mm (~6.5 x 8.5”)
  • Near-IR emission spectra from 900 to 1600 nm
  • Optional near-IR absorption spectra from 900 to 1600 nm
  • Rapid sequence acquisition for kinetic studies or eluent monitoring
  • Choice of one excitation wavelength

The NS-MiniTracer is the newest and most affordable member of the NanoSpectralyzer family. Its robust, compact design includes one excitation laser and optics for capturing the characteristic near-IR fluorescence from fluorophores such as dispersed SWCNTs or PbS quantum dots. Optimized for the lowest possible optical backgrounds, the MiniTracer offers long integration times to provide exceptional detection sensitivity. It is the best instrument available for the selective detection and quantitation of trace amounts of SWCNTs  in environmental and biological specimens.

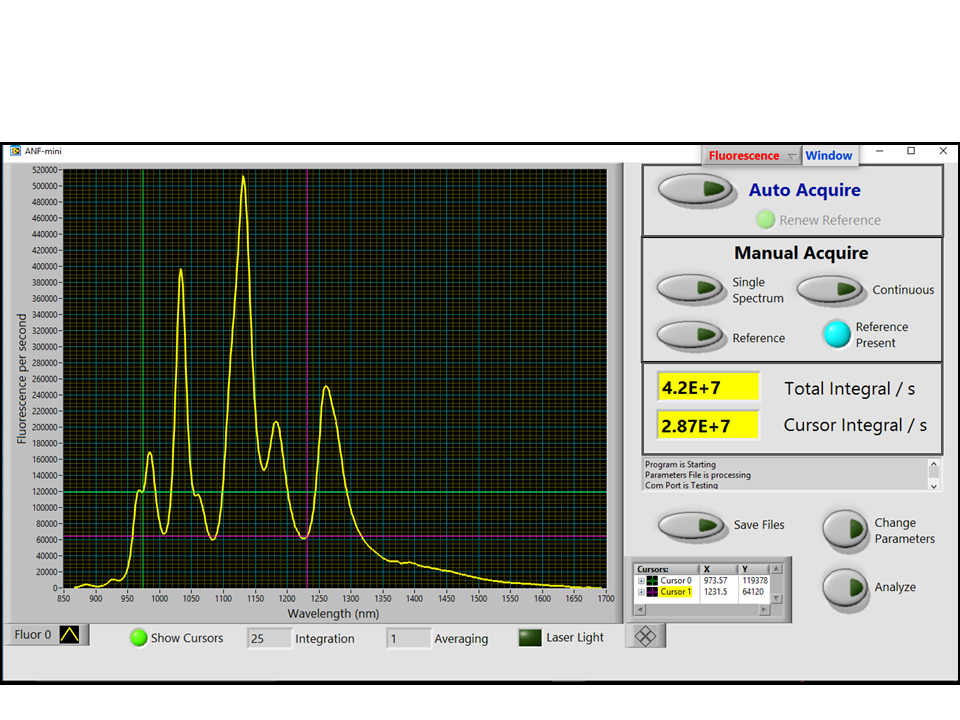

Operation of the NS-MiniTracer is also exceptionally easy and user-friendly. Custom software prompts the user to load blank and sample specimens, and automatically selects optimal data acquisition parameters. After acquisition is complete, a full emission spectrum is displayed along with the net spectrally integrated nanotube emission signal. This convenient numerical result is proportional to SWCNT content within a set of samples, and can be used to construct project-specific calibration curves.



The NS-MiniTracer is also an ideal tool for any laboratory that needs to routinely characterize their SWCNT dispersions. It quickly captures emission spectra that reflect the composition, concentration, and individualization of a sample’s SWCNTs. And it gives even more spectral information with the affordable near-IR absorption option.

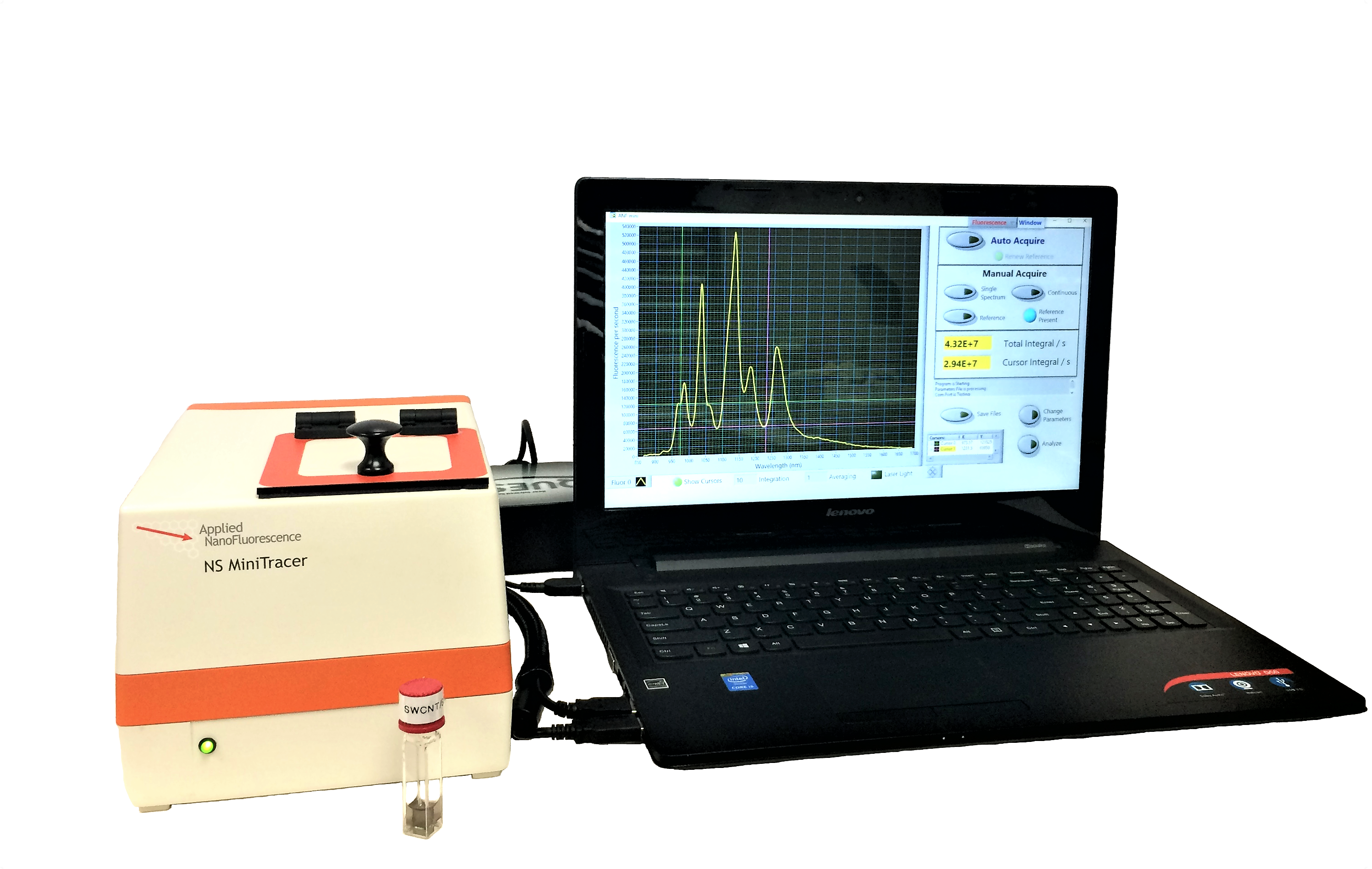

Applied NanoFluorescence delivers the NS-MiniTracer as a complete turn-key system including a notebook computer pre-loaded with custom software for instrument control and data analysis. The system carries a full one-year warranty plus free software updates for three years.



*Please note the images of the instrument and software are of the prototype and the actual appearance may vary.

  1. Specifications
  2. Spectral Plots
  3. Downloads

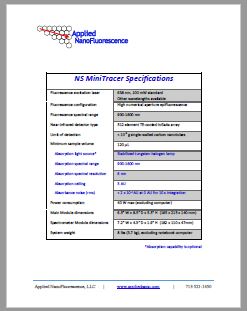

NS MiniTracer Specifications

Fluorescence excitation laser

638 nm, 100 mW standard
Other wavelengths available

Fluorescence configuration

High numerical aperture epifluorescence

Fluorescence spectral range

900-1600 nm

Near-infrared detector type

512 element TE-cooled InGaAs array

Limit of detection

< 10-9 g single-walled carbon nanotubes

Minimum sample volume

120 μL

Absorption light source*

Stabilized tungsten-halogen lamp

Absorption spectral range

900-1600 nm

Absorption spectral resolution

6 nm

Absorption ceiling

3 AU

Absorbance noise (rms)

< 2 x 10-4 AU at 0 AU for 10 s integration

Power consumption

40 W max (excluding computer)

Main Module dimensions

6.5" W x 8.5" D x 5.5" H  (165 x 215 x 140 mm)

Spectrometer Module dimensions

7.2" W x 4.3" D x 1.9" H  (182 x 110 x 47mm)

System weight

8 lbs (3.7 kg), excluding notebook computer

 *Absorption capability is optional

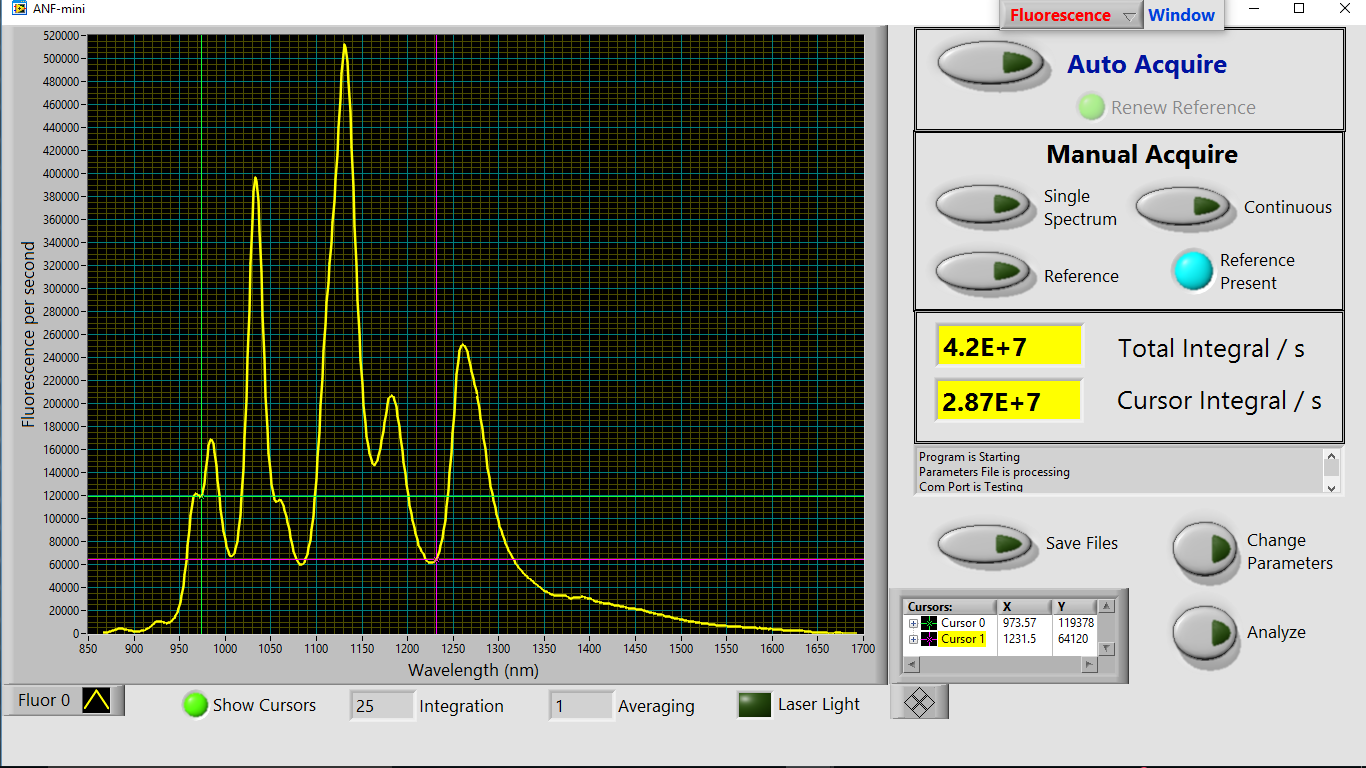

Near-infrared fluorescence spectrum (900-1600 nm) with 638 nm excitation

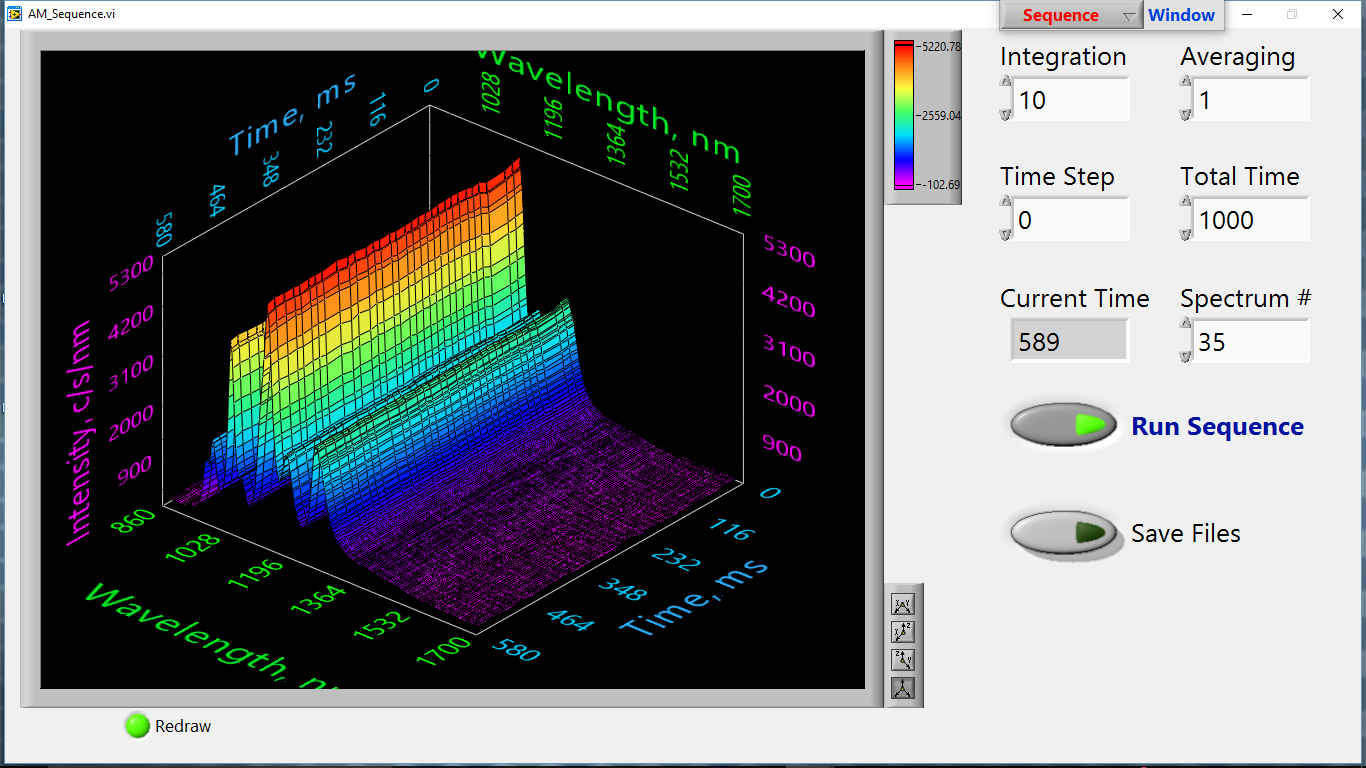

Sequence acquisition of near-infrared fluorescence

spectra (900-1600 nm) with 638 nm excitation

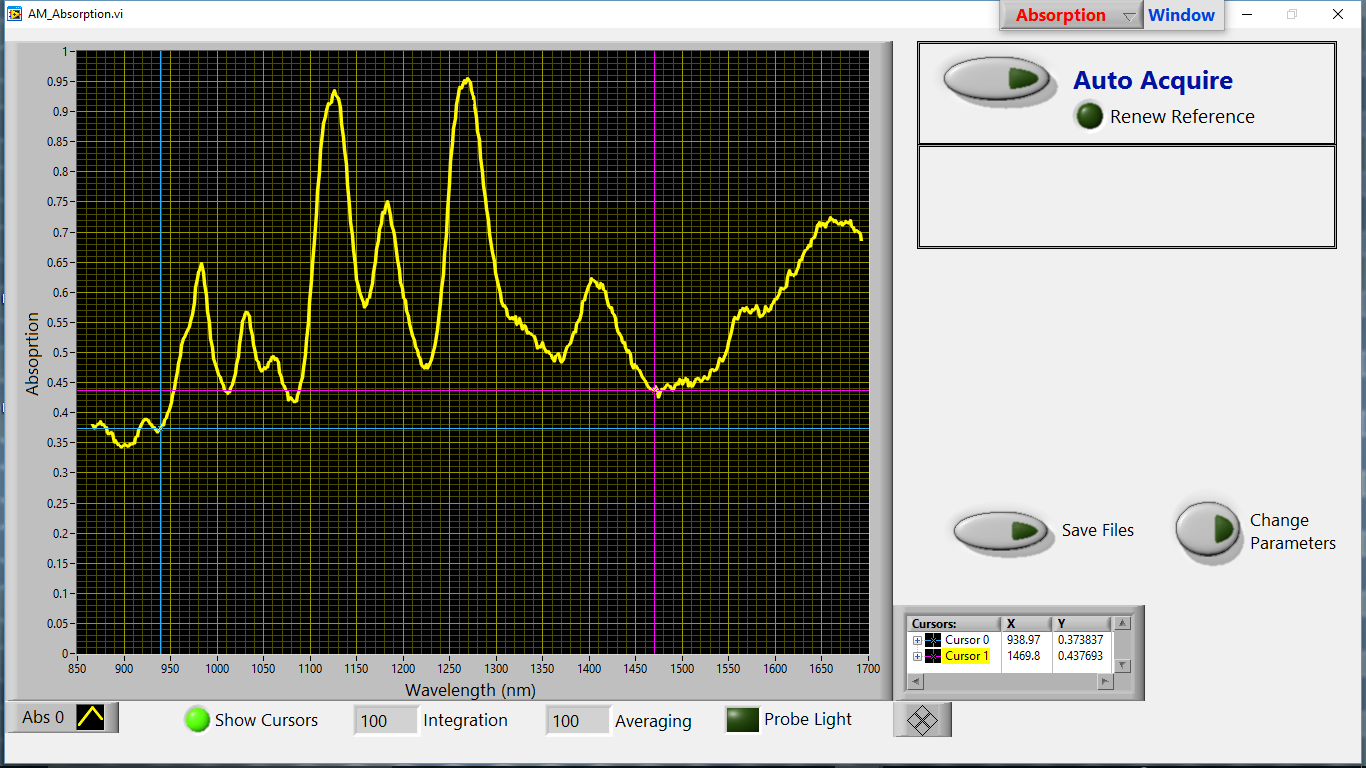

Optional: near-infrared absorption (900-1600 nm)

 *Sample is a single-walled carbon nanotube suspension in D2O
