New - The NS Super


The NS Super is the latest addition to the innovative line of NanoSpectralyzer systems and is configured for rapid-scan excitation-emission scans with continuous visible excitation (450-850 nm) and near-infrared emission (900-1600 nm).This instrument is based on SBIR Phase I leading-edge research. For more information please inquire at 713-521-1450 or This email address is being protected from spambots. You need JavaScript enabled to view it..



Based on our NS3 NanoSpectralyzer


  • Continuous variable supercontinuum excitation source from 450-850 nm
  • NIR emission detection from 900-1600 nm
  • One higher power fixed wavelength laser for NIR fluorescence trace detection and kinetic studies
  • Visible and NIR absorption from 410-1600 nm
  • Quick measurements with user-friendly software
  • Optional: Can include a single excitation wavelength Raman module

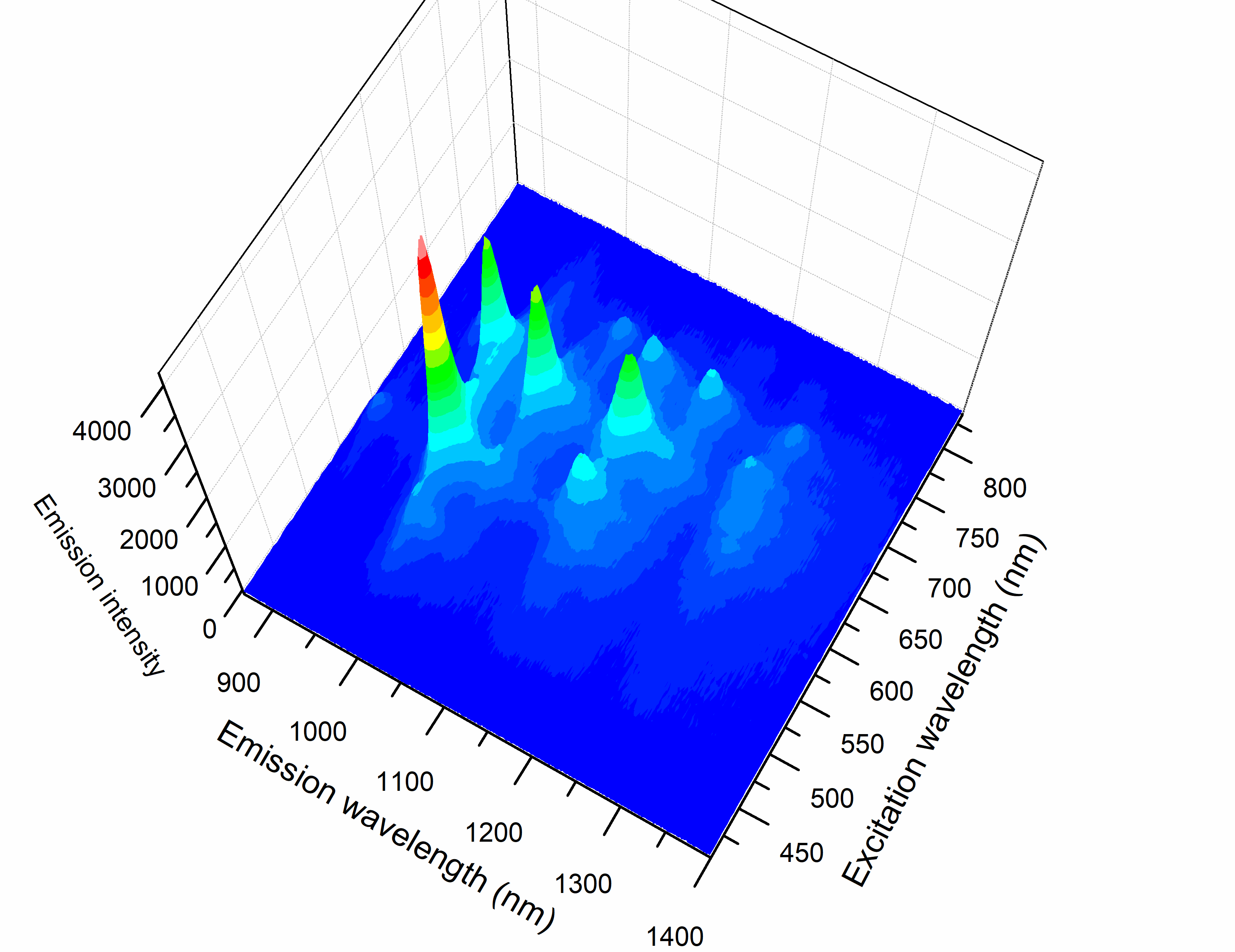

Excitation-Emission scan of HiPco SWCNTs suspended in sodium cholate.

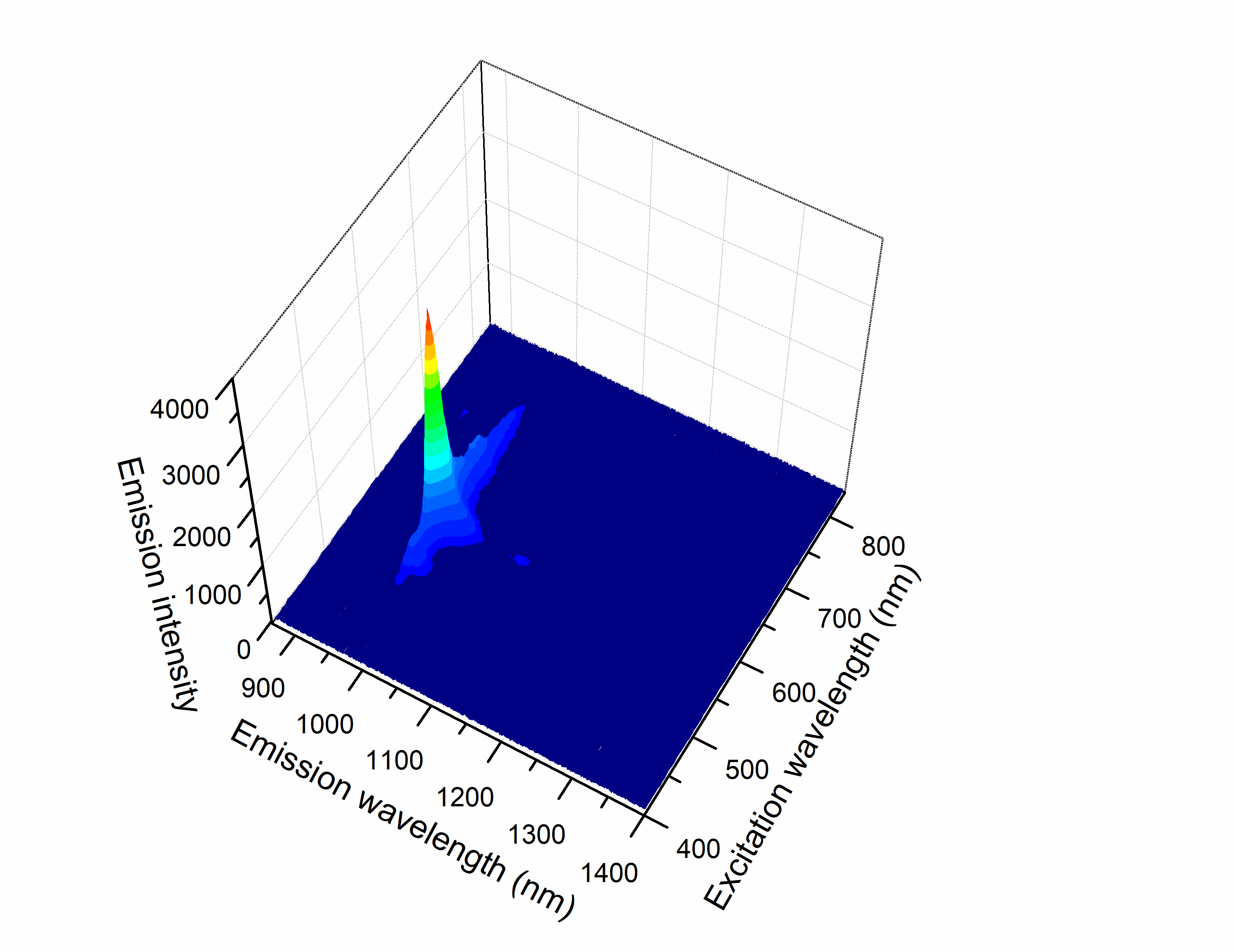

Excitation-Emission scan of sorted (6,5) nanotubes.


Above is sample data obtained during the Phase I research, demonstrating the capability for the instrument to obtain 2D excitation-emission scans in 2 minutes with signal to noise above 100.


Applied NanoFluorescence delivers the NS Super as a complete turn-key system including a computer pre-loaded with custom software for instrument control and data analysis. The system carries a full one-year warranty plus free software updates for three years.


*Please note the images of the instrument and software are of the prototype and the actual appearance may vary.
